Surface-Mount Technology (SMT) has fundamentally transformed the electronics manufacturing industry. Unlike its predecessor, through-hole technology (THT), SMT enabled miniaturization, increased circuit complexity, and faster manufacturing processes. This shift, which began in earnest during the 1960s, now dominates modern electronics production. To understand SMT’s importance, it’s necessary to explore its historical evolution, the key drivers behind its adoption, and its influence on the electronics industry.
The Beginnings of Surface-Mount Technology
Before SMT emerged, through-hole technology was the predominant method for assembling electronic circuits. THT required components to have leads or pins that were inserted into holes drilled in printed circuit boards (PCBs), and then soldered on the opposite side of the board. While reliable, this method had its limitations. As electronic devices became smaller, denser, and more complex, the size and production inefficiencies of THT became apparent.
The origins of SMT can be traced back to the early 1960s. During this period, companies began searching for more efficient methods of assembling electronic components. IBM was one of the pioneers in this field, initially developing techniques to mount components directly onto the surface of the circuit board, thereby eliminating the need for drilled holes. These efforts were spurred by the demand for smaller, more reliable computers and electronics. The military and aerospace industries, in particular, needed highly reliable and compact devices for use in missiles, satellites, and aircraft.
By the late 1960s and early 1970s, SMT components started to be developed. These components did not have long leads, like THT components. Instead, they were designed with smaller connection points or “pads” that could be soldered directly onto the surface of the PCB. The reduction in size and weight allowed for more components to be placed on a given area of the board, leading to more complex circuits and designs. This was a revolutionary advancement, particularly for industries that required precision and compactness, such as aerospace, telecommunications, and later, consumer electronics.
The Rise and Adoption of SMT in the 1980s

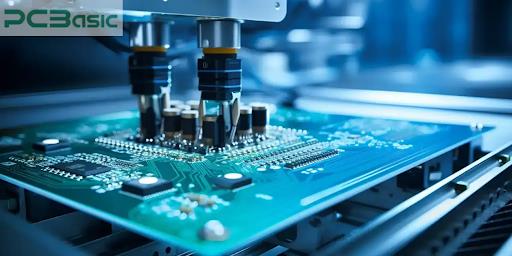

Despite early experimentation, SMT did not become mainstream until the 1980s. Several key developments drove its adoption. First, advancements in PCB manufacturing techniques made it easier to produce high-quality surface-mount boards. The introduction of automated pick-and-place machines allowed manufacturers to rapidly place tiny SMT components on boards with high precision, dramatically speeding up the assembly process.
Second, the miniaturization of components and the growing complexity of electronics designs, especially with the rise of personal computing and telecommunications, demanded a technology that could support more compact and efficient designs. THT simply could not keep pace with the increasing demand for smaller and more powerful devices. SMT became the solution, enabling manufacturers to shrink the size of their products without sacrificing performance.
Another crucial factor in the rise of SMT was the development of improved soldering techniques, particularly reflow soldering. In the reflow process, solder paste is applied to the PCB, and SMT components are placed on top. The entire assembly is then heated, causing the solder to melt and form reliable electrical connections. This method allowed for fast, consistent, and reliable mass production, further cementing SMT as the industry standard.
The Impact of SMT on Electronics Manufacturing
By the 1990s, SMT had become the dominant method of electronics assembly, and it remains so today. The technology brought numerous advantages to the electronics manufacturing process. First and foremost, SMT allowed for higher component density. By mounting components directly onto the PCB’s surface, manufacturers could fit more components into a smaller space, making it possible to create more complex, powerful circuits. This was a crucial factor in the development of modern computing, telecommunications devices, and portable electronics like smartphones and laptops.
Additionally, SMT significantly reduced manufacturing costs. Automated assembly lines using SMT techniques could produce electronics faster and with fewer errors than the manual or semi-automated processes used for THT. This increase in efficiency helped drive down the cost of electronics production, contributing to the proliferation of affordable consumer electronics.
Moreover, SMT allowed for more flexibility in design. Because components could be placed on both sides of the PCB, engineers had greater freedom to create complex multilayer boards. This was particularly important as the demand for faster processors, larger memory capacities, and more sophisticated electronic devices grew.
Challenges and Innovations in SMT
Despite its advantages, SMT was not without its challenges. One of the primary difficulties was dealing with heat-sensitive components. As components became smaller and more compact, they also became more susceptible to heat damage during the soldering process. However, advances in reflow soldering techniques, such as the introduction of nitrogen reflow ovens, helped mitigate these issues by providing more precise temperature control.
Another challenge was the development of reliable testing methods for SMT-assembled boards. Traditional testing methods, such as in-circuit testing (ICT), were less effective for surface-mounted components due to their smaller size and closer spacing. This led to the development of new testing techniques, such as automated optical inspection (AOI) and X-ray inspection, which could detect faults in SMT assemblies without damaging the components.
SMT in the 21st Century and Beyond
In the 21st century, SMT continues to evolve alongside advancements in electronics technology. The push toward even smaller devices, such as wearables, Internet of Things (IoT) devices, and medical implants, has led to the development of even more miniaturized SMT components. The rise of 3D printing and additive manufacturing technologies has also opened up new possibilities for SMT, allowing for the creation of more complex, custom-designed circuits.
Today, SMT is essential for producing nearly all modern electronic devices, from smartphones and laptops to medical equipment and automotive electronics. As electronic devices become even more integrated into our daily lives, the importance of SMT will only continue to grow.
Conclusion
The history of Surface-Mount Technology is a story of innovation driven by the need for miniaturization, efficiency, and cost-effectiveness in the electronics industry. From its early development in the 1960s to its widespread adoption in the 1980s and beyond, SMT has revolutionized electronics manufacturing. By allowing for higher component density, faster assembly, and more complex designs, SMT has played a critical role in the development of the modern electronics we rely on today. As technology continues to advance, SMT will remain at the heart of electronics innovation, shaping the future of how we design and manufacture electronic devices.
